Products / Threaded Inserts For PCB / Broaching Standoff For PCB

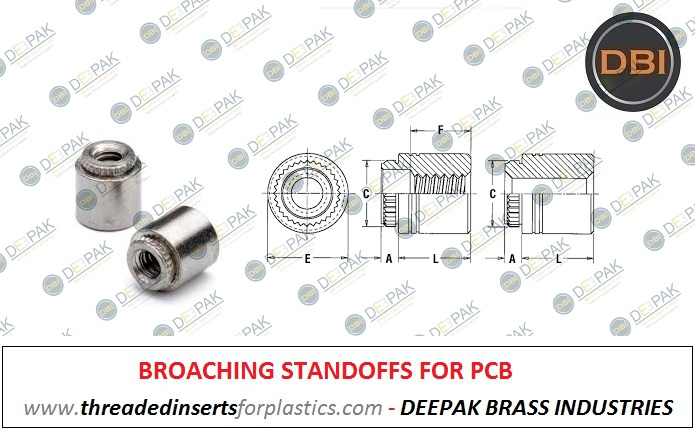

Broaching standoffs manufactured by Deepak Brass Industries provide strong reusable threads or thru-holes in a spacer format in non-ductile materials such as printed circuit board, polycarbonate, acrylic, glass epoxy and resin laminate components as well as ductile panels with a maximum hardness of 60HRB.

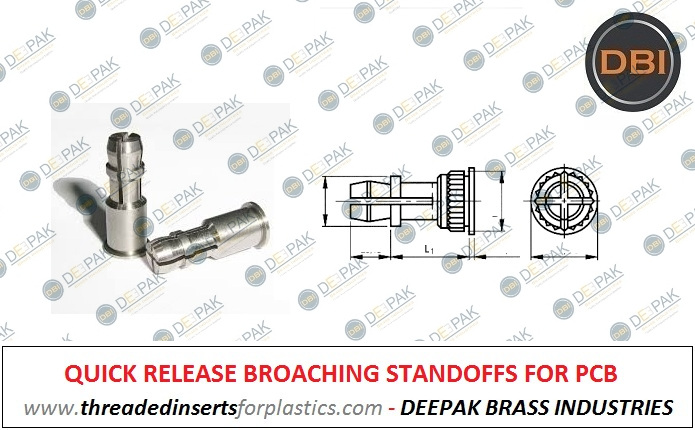

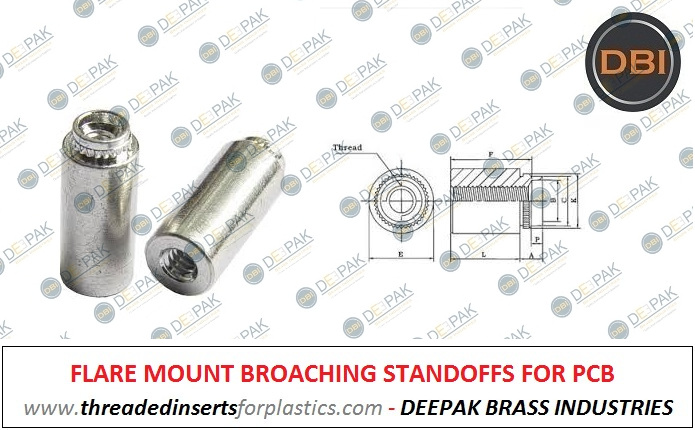

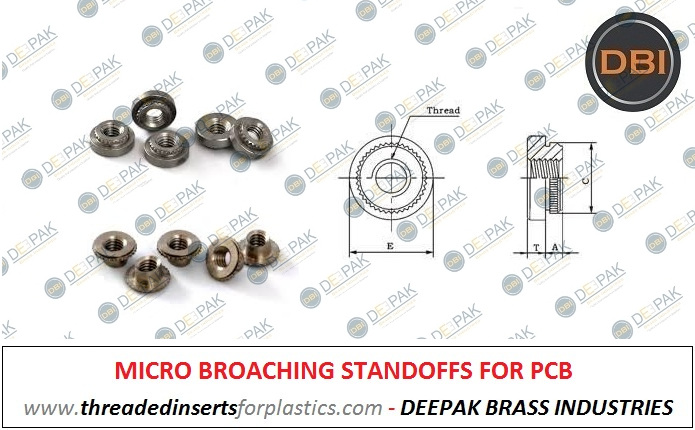

Types : Flare Mounting Broaching Standoffs, Quick Release Broaching Standoffs, Micro Standoffs

Material : Carbon Steel, Stainless Steel 300 Series, Brass, Aluminium

Available thread sizes :

Inches :
  • #4-40
  • #6-32

Metric :
  • M2.5 x 0.45
  • M3 x 0.5

For applications that require the use of stacked assemblies, the Deepak Brass Industries Broaching type standoff will provide robust mechanical connections between the individual layers of the overall assembly.

Applications


Threaded Inserts for Plastics, Threaded Inserts for Thermosetting Plastics, Threaded Inserts for Thermoplastics, Threaded Inserts for Injection Moulding, Threaded Inserts for Sheet Metals. Threaded Inserts for Woods, Timber, Plywood & Laminates, Threaded Inserts for Fibreglass, Threaded Inserts for Epoxy & Rubber, Threaded Inserts for PCBs, Custom Inserts for various Fastening Solutions.

Material :
Our Threaded Inserts are available in Brass, Stainless Steel, Carbon Steel, Aluminium & Silicon Bronze material as per Fastening Applications.
